E-CLIK Pro for Polaris SXS with Fox Shocks
The E-CLIK system is the first to bring this technology to the aftermarket. It incorporates proprietary electronics and tuning to deliver the perfect ride and control across any terrain, nothing stands in your way. It is Suspension Without Compromise. The best Side by Side is the one you already have.
FEATURES:
- 3 Terrain Modes for on the fly adjustment - Dune, Desert, Trail
- Pro Menu to fine tune system sensitivies to your preferences.
- Adapt a tradionally non-live valve car to be able to run live valve shocks.
- Front & Rear independent stiffness adjustment.
- Load Compensation for when you’ve got extra cargo for a run.
FITMENT:
Polaris Dynamix vehicles with Live Valve Shocks preinstalled, or that have been adapted with Live Valve shocks.
The E-CLIK system is the first to bring this technology to the aftermarket. It incorporates proprietary electronics and tuning to deliver the perfect ride and control across any terrain, nothing stands in your way. It is Suspension Without Compromise. The best Side by Side is the one you already have.
Technology

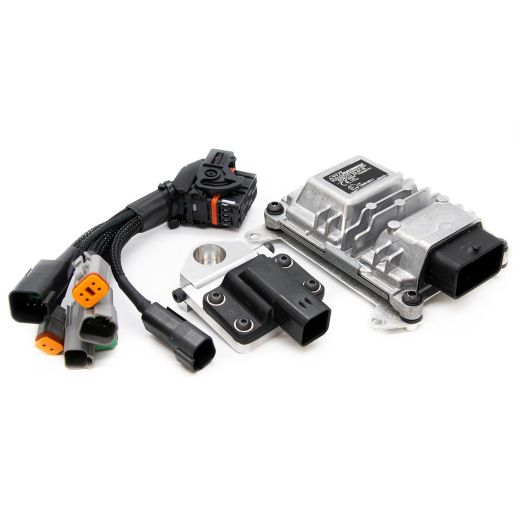

The E-CLIK ECU uses 12 inputs from multiple sensors, an industry leading 250 times per second to adjust each shock automatically based on terrain and driving conditions.
• Adjustments are made near instantly utilizing the patent pending E-Valve (Walker Evans) or Live Valves (FOX)
• The high accuracy, 8 Axis Inertia Measurement Unit is a advanced stand-alone unit, separate from the ECU circuit board.
• IP69K – E-CLIK utilizes rugged ECU, IMU, and sealed connectors to stand up to the harshest conditions
Touch Screen Controller
3 Modes – Allows adjustment to the base shock setting through the controller.
• Cloud – Excels in slower trail riding and rock crawling Giving a soft, comfortable ride without sacrificing body control
• Dune – Shines in extreme transitions. The ECU senses G-Outs and stiffens the front, then the rear at the perfect time making bottom outs a thing of the past.
• Race – For when you need to crank things up a notch for high-speed action. More reactive to terrain and driver input for precise handling and control.
Customization
Your SxS setup is as unique as you.
• Independent Front and Rear Shock Adjustment
• Rear Load Compensation
Real Time Displays
• Shock setting at all 4 corners
• Vehicle Roll and Pitch
• Vehicle Speed (corrected for tire size)
Fine Tune Like a Pro
The PRO menu also allows adjustment to the way the system reacts to every driving condition.
You’re able to Adjust:
• Pitch Sensitivity
• Roll Sensitivity
• Turn Sensitivity
• Throttle Sensitivity
• Brake Sensitivity
H/S Button
Steering wheel mounted button instantly sets shocks to full stiff, for when you see a sudden big bump or hole at high speed.
Quick Adjust Switch (Add-on)
Aimed at desert racers, 3 settings allow for easy adjustment at speed to compensate for shock fade in long races.
KIT DOES NOT COME WITH LIVE VALVES. SHOCKS MUST BE PRE-ADAPTED TO LIVE VALVE, OR BE EXISTING LIVE VALVE SHOCKS.
